GENERAL INFORMATION

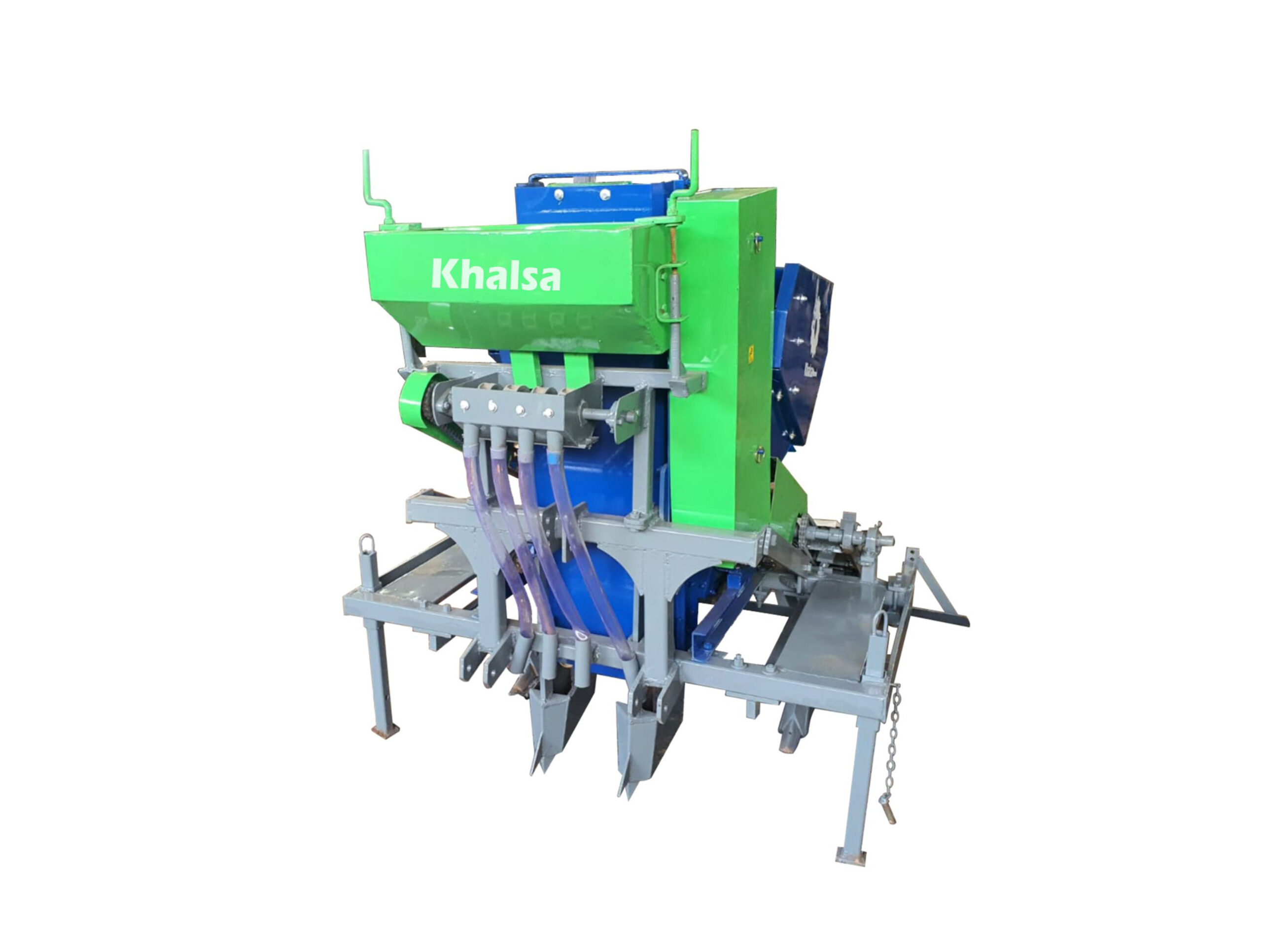

The Khalsa Automatic Planter with its gentle
handling twin cup is specially designed for the
grower who wants accurate even spacing for the
seed with multi seed placement space setting
these compact planters put the seeds exactly
where it is wanted at the speed up to 5Kmph
according to the spacing required. Fully
automatic planter is equipped with an adjustable
baffle to regulate the amount of potatoes
entering the seed chambers their by ensuring
gentle handling and also a variable agitator
which is a device fitted to operate against the twin
cup belt and eliminate double seeds and pick
one seed at a time and with independent front
mounted furrow openers the seed is placed into
the soil and which is then gently covered by
furrows and back leveler of required height.
STANDARD FEATURES
FEATURE & ADVANTAGE
- Robust frame structure for higher life
2. Dedicated Customer Support and Services
3. Using this machine reduce labour and give high output.
4. Easy and comfortable operation.
5. Khalsa Automatic Potato Planter make a good base for increasing production and growing up of
potatoes.
6. This Planter is superior for various requirement of agriculture seeds & depth and seed to seed spacing .
9. This potato planter can plant all type of potato seeds.(uncut and cut seeds)
10. By 36” inches single seed lines, one can achieve 10-15% acre yield as compare for normal row
planting.
11. By attached two water channel, no need to make water channel after planting which reduce time &
labour & Diesel cost. - 1. It can be used for different areas, climates and soil.
2. Work process-potatoes will be loaded into the potato seed hopper and fertilizer into fertilizer
container. The two circular wheels when get in contact with soil, with its U shape foots makes the
wheels to revolve and which gives drive to the vertical conveyer which lifts the potato and give drive to
fertilizer mechanism through which measured quantity of fertilizer is placed near seed by tyne and
fertilizer pipe.
3. With top side transmission it Is very easy to change he seed placement distance through the set
combination.
4. This is ideal planting machine for small and big farms and suitable for wide range of farm tractors.
5. This machine has distinct ability to accurately plant seed at specific interval and width.
6. Advanced planting mechanism ensures efficient operations along with speed, accuracy and gentle
handling of potato seed from hopper to ground.
7. Various seed width seed row spacing options are available.
8. Tested by government of India.
9. No manpower required
10. Efficient and easy to maintain

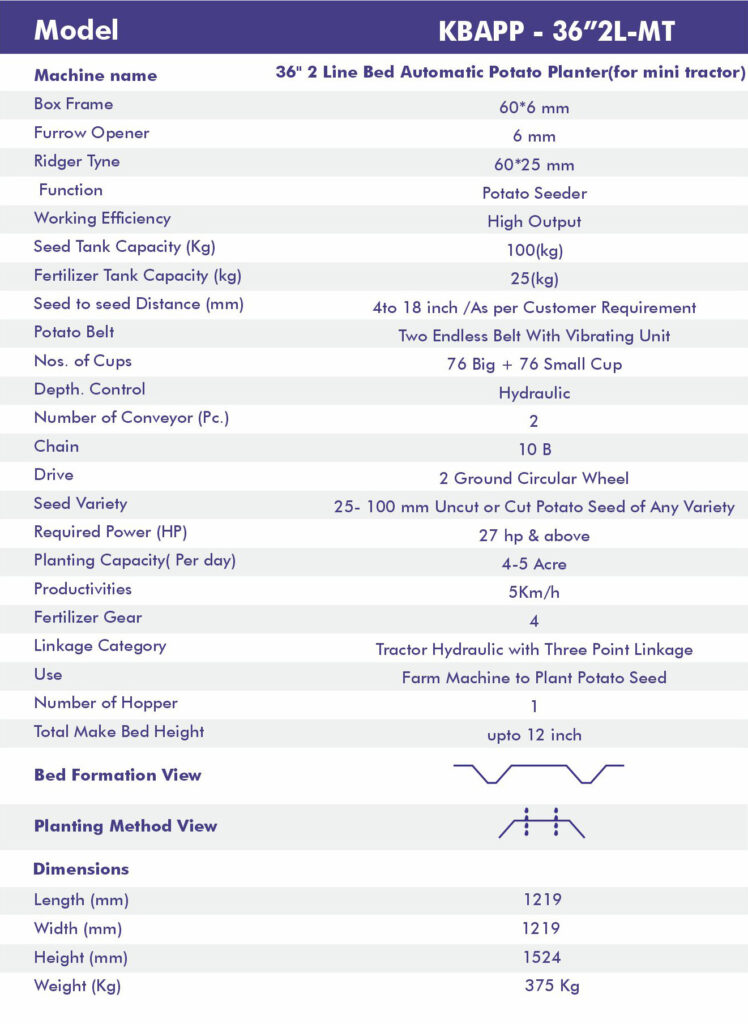

TECHNICAL SPECIFICATIONS
PHOTO GALLERY
